Press brake tools

Material and processing specifications

The folding tools are made of C45 or 42 CrMo4 steel hardened by induction for a hardness of 52-55 Hrc on the working parts. Anti-wear treatments by nitriding on 42 CrMo4 are available on request.An anti-corrosion treatment by galvanisation is also possible.

The lenghts of punch and dies blades

The punches and dies are available in the lenghts of 415, 835 and 805 mm split for adaptable AMADA

The available lenghts of the punches and dies are 100, 200, 300, 500 and 550 mm split for the adaptable WILA TRUMPF, BYSTRONIC, BEYELER, LDV, EHT, WEINBRENNER, NEWTON.

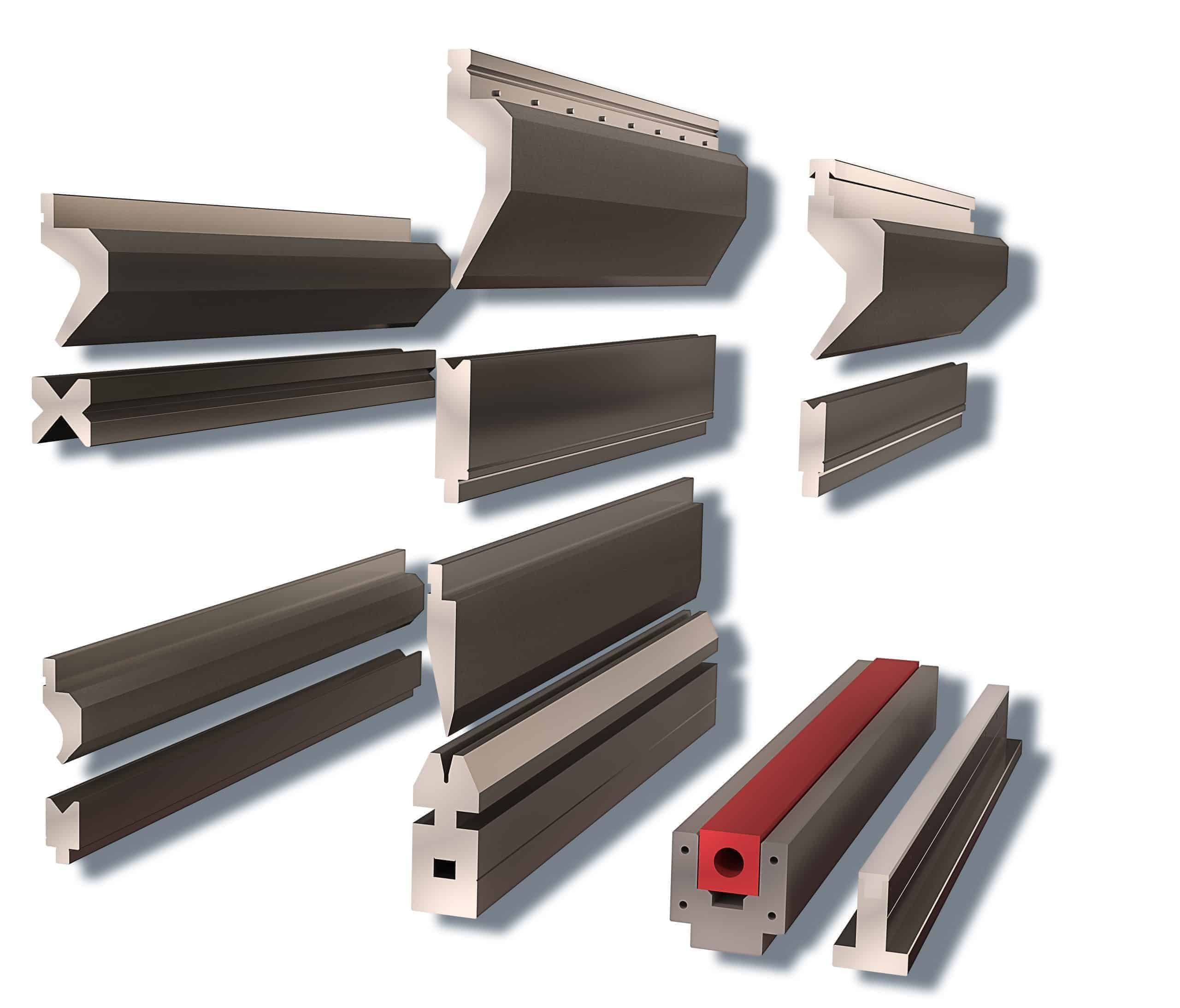

A large range of folding tools is available :

• Punches from 26 to 90°,
• Rotary punches and movable bigornes,
• 28 to 90° blades and blade holders,

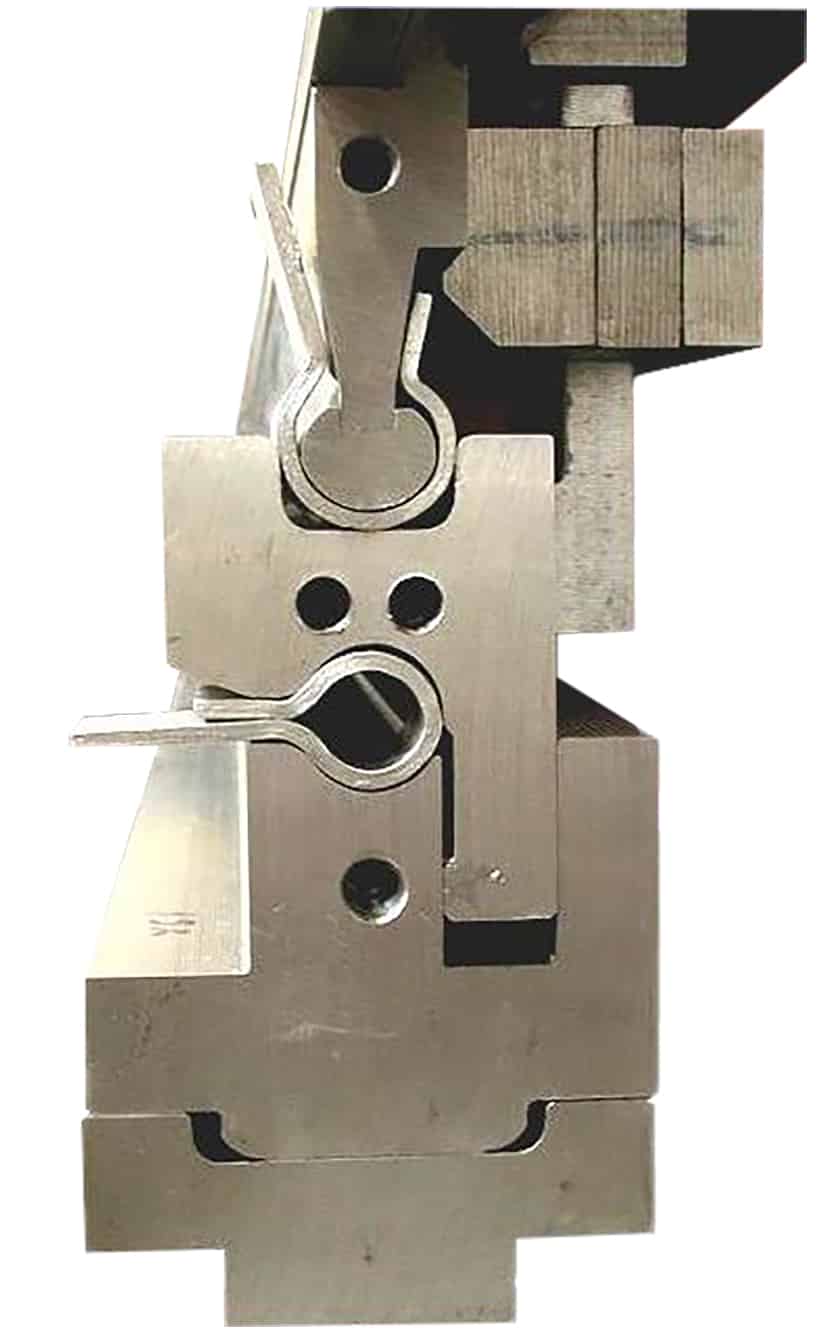

• Z-folding and radiating tools with inserts,
• Dies and folding vee,
• Matrix supports,
• Crushing tools with spring and pneumatic moving dies.

Non marking folding :

• UNIBEND dies allow reduction of tool change time and 90% of marks due to friction. They offer the possibility of bending parts with narrow edges as well as the reduction of deformation of holes or cutouts located on the bending line. UNIBEND Dies can be used on any type of press thanks to a whole series of adapters.
• Roller dies with adjustable opening are a significant time saver by the very rapid change of the opening of the vee without changing tools. They reduce contact marks and allow a press power gain of up to 30%.
• Non marking folding is ensured by a range of insert holders with polyurethane or nylon dies. They avoid any contamination of materials.
• The protective films fitted with a tensioner, placed on the dies, prevent any scratches and contamination of the materials. Usable on any kind of matrix, they facilitate handling.

A large choice of accessories for punch and dies :

• Punches adapters,
• Intermediaries, extensions and extenders for punches,
• Adapters and intermediaries with manual quick release,
• Intermediate pneumatic locking for quick change,
• Fixing flanges for intermediates,
• lower adapters for matrix and vee,
• Modular matrix support sole,
• Extension for die and vee with pneumatic locking.

Press brake accessories

• Standard and magnetic positioning stops,
• Fixed, retractable and micrometric stops,
• Graduated stop supports,
• Tool trolley  AMADA, PROMECAM, WILA TRUMPF, BEYELER, LVD
